Product Details:
|
| Center Wavelength: | 840-860 Nm | Temperature: | 0°C~+70°C |
|---|---|---|---|
| Weight: | 0.05KG/PCS | Performance: | Auto-sensing Of 2, 4, And 8 Gbit/sec Port Speeds |
| Cable Type: | MMF | Cable Distance: | 150m |
| Connector: | Industry-standard LC Duplex | Compliant: | RoHS |
| Highlight: | 850nm SWL Optical Transceiver,57-1000485-01 SWL Optical Transceiver,100m SWL Optical Transceiver |
||

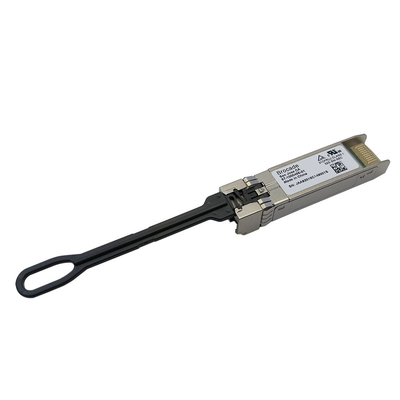

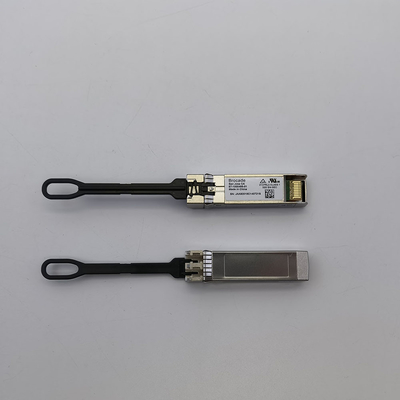

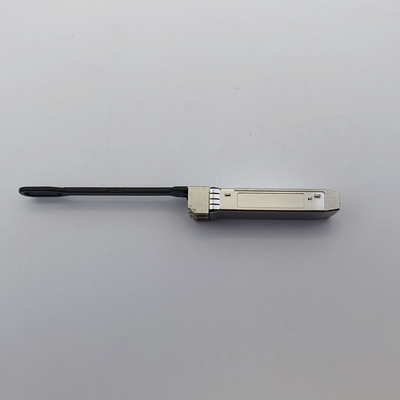

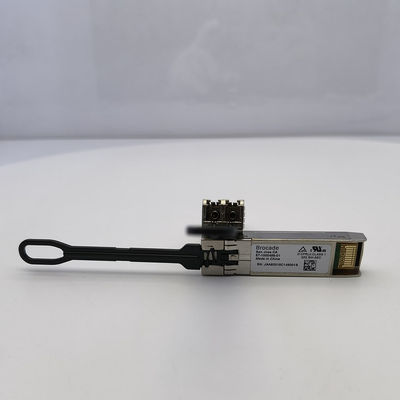

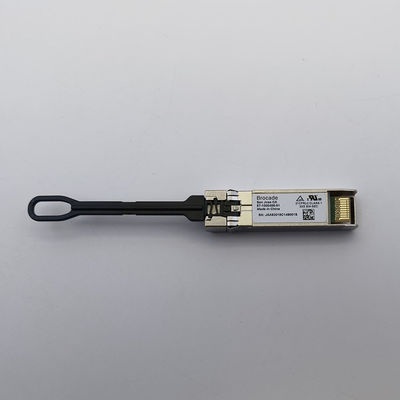

Brocade 57-1000485-01 XBR-000412 32Gbps SFP+ SWL Optical Transceiver 850nm LC Duplex 100m OM4 Multimode Fiber
Brocade 57-1000485-01 XBR-000413 32G FC SFP+ Optical Transceiver Module
The Brocade 57-1000485-01 XBR-000413 32G FC SFP+ is a cutting-edge optical transceiver module designed for next-level high-speed data communications. Utilizing advanced Fibre Channel (FC) technology, this Small Form-factor Pluggable Plus (SFP+) module offers superior connectivity solutions for data centers, storage area networks, and enterprise networking.
With its impressive 32Gb/s data transfer rate, the 57-1000485-01 provides an excellent solution for applications demanding high-speed storage connectivity, including virtualization, high-performance computing, and cloud infrastructure. This enables efficient, rapid data transfers, improving overall network performance and productivity.
This module is compliant with the latest Fibre Channel standards, ensuring compatibility and interoperability with FC equipment. Its hot-swappable design allows for seamless integration into existing network infrastructure without causing downtime or interruption.
Incorporating Short-Wavelength (SWL) technology, the 57-1000485-01 supports operational distances of up to 100 meters over Multi-Mode Fiber (MMF), making it suitable for a wide variety of short-range applications.
Its low power consumption makes it an environmentally friendly choice, reducing your network's carbon footprint while also lowering operational costs.
Key Features:
In conclusion, the Brocade 57-1000485-01 XBR-000413 32G FC SFP+ Optical Transceiver Module offers high-speed performance, ease of use, and robust reliability. Ideal for data-intensive operations, it provides an excellent connectivity solution for your network, helping to maximize performance and efficiency.
Parameters for the 16Gb/s SWL FC SFP+ Transceiver Module:
| Performance | Fibre Channel: 2.125, 4.250, and 8.5 Gbit/sec line speed, full duplex; auto-sensing of 2, 4, and 8 Gbit/sec port speeds |
| Media |
Hot-pluggable, industry-standard Small Form-Factor Pluggable (SFP+), LC connector; Short Wavelength (SWL) |
| Operating Parameters |
Transmit (Tx): Wavelength: 840 to 860 nm Spectral width: 0.65 nm Average power: -8 dBm RIN: -128 dB/Hz max Optical return loss: -12 dB minimum OMA: 302 μW, -5.2 dBm
Receive (Rx): Wavelength: 770 to 860 nm Average power: 0 dBm Optical return loss: -12 dB Unstressed sensitivity: 76 μW, -11.2 dBm SRS OMA: 148 μW, -8.3 dBm 3 dB cutoff maximum: 12 GHz |
| Operating distances |
OM1 62.5 μm (200-500 MHz*km) Distance Loss 2 Gbit/sec Fibre Channel 0.5 to 150 m 2.10 dB 4 Gbit/sec Fibre Channel 0.5 to 70 m 1.78 dB 8 Gbit/sec Fibre Channel 0.5 to 21 m 1.58 dB
OM2 50 μm (500 MHz*km) Distance Loss 2 Gbit/sec Fibre Channel 0.5 to 300 m 2.62 dB 4 Gbit/sec Fibre Channel 0.5 to 150 m 2.06 dB 8 Gbit/sec Fibre Channel 0.5 to 50 m 1.68 dB
OM3 50 μm (1500 MHz*km) Distance Loss 2 Gbit/sec Fibre Channel 0.5 to 500 m 3.31 dB 4 Gbit/sec Fibre Channel 0.5 to 380 m 2.88 dB 8 Gbit/sec Fibre Channel 0.5 to 150 m 2.04 dB |
| Size |
Width: 14.00 mm (0.55 inches) Height: 12.40 mm (0.49 inches) Depth: 57.50 mm (2.26 inches) |
| Storage Temperature | −40°C to 85°C (−40°F to 185°F) |
| Power Dissipation | 0.8W |
Photo for Brocade 16Gb/s 57-0000088-01 SWL FC SFP+ Transceiver
FAQ
Q1. Except for this Brocade 8Gb/s SWL FC SFP+ Transceiver optical modules, what else Brocade sfp can you offer?
A1: pls check the below form for the Brocade optical module we can offer;
| Data Rate |
Description
|
Manufacturing
Part Number
|
Brocade Ordering
Part Number
|
|
4x32G FC QSFP+
|
SWL
|
57-1000351-01
|
XBR-000275 (1-pack)
|
| 4x32G FC QSFP+ |
SWL
|
57-1000490-01
|
XBR-000475 (1-pack)
|
| 4x32G FC QSFP+ |
2 km
|
57-1000480-01
|
XBR-000285 (1-pack)
|
| 64G FC SFP+ |
SWL
|
57-1000495-01
|
XBR-000462 (1-pack)
XBR-000463 (8-pack)
|
| 64G FC SFP+ |
LWL - 10 km
|
57-1000496-01
|
XBR-000468 (1-pack)
XBR-000469 (8-pack)
|
| 64G FC SFP+ |
ELWL - 25 km
|
57-1000497-01
|
XBR-000466 (1-pack)
|
|
32G FC SFP+
|
SWL
|
57-1000333-01
|
XBR-000212 (1-pack)
XBR-000213 (8-pack)
|
| 32G FC SFP+ |
SWL
|
57-1000485-01
|
XBR-000412 (1-pack)
XBR-000413 (8-pack)
|
| 32G FC SFP+ |
LWL - 10 km
|
57-1000332-01
|
XBR-000238 (1-pack)
XBR-000239 (8-pack)
|
| 32G FC SFP+ |
LWL - 10 km
|
57-1000486-01
|
XBR-000438 (1-pack)
XBR-000439 (8-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000355-01
|
XBR-000278 (1-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000494-01
|
XBR-000478 (1-pack)
|
| 32G FC SFP+ |
ELWL - 25 km
|
57-1000498-01
|
XBR-000479 (1-pack)
|
|
16G FC SFP+
|
SWL
|
57-0000088-01
|
XBR-000192 (1-pack)
XBR-000193 (8-pack)
|
|
16G FC SFP+
|
SWL
|
57-1000487-01
|
XBR-000492 (1-pack)
XBR-000493 (8-pack)
|
|
16G FC SFP+
|
LWL - 10 km |
57-0000089-01
|
XBR-000198 (1-pack)
XBR-000199 (8-pack)
|
|
16G FC SFP+
|
LWL - 10 km |
57-1000488-01
|
XBR-000498 (1-pack)
XBR-000499 (8-pack)
|
|
16G FC SFP+
|
ELWL - 25 km |
57-1000262-01
|
XBR-000258 (1-pack)
|
|
16G FC SFP+
|
ELWL - 25 km |
57-1000489-01
|
XBR-000458 (1-pack)
|
|
8G FC SFP+
|
SWL
|
57-1000117-01
|
XBR-000163 (1-pack)
XBR-000164 (8-pack)
|
| 8G FC SFP+ | LWL - 10 km |
57-1000027-02
|
XBR-000153 (1-pack)
XBR-000172 (8-pack)
|
| 8G FC SFP+ | ELWL - 25 km |
57-0000080-01
|
XBR-000174 (1-pack)
|
Q2:Is this genuine Brocade Original 8G SWL FC SFP+ Transceiver?
A2:Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since year 2006 and never sell fake or copy brand items.
Q3:Does your SFP provide a quality warranty?
A3:For brocade SFP, we offer 1-year warranty. Any quality problem, we will replace for you;
Q4:Can you send this SFP module to my place? and how long does it take?
A4:Yes, we can provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.
The express logistic generally takes 5-12 days to global.
