Broadcom AFBR-89CDHZ Transceiver QSFP28 100G SR4 Pluggable Parallel

Broadcom AFBR-89CDHZ Transceiver QSFP28 100G SR4 Pluggable Parallel
Broadcom AFBR-89CDHZ Transceiver QSFP28 100G SR4 Pluggable Parallel Broadcom AFBR-89CDHZ Transceiver QSFP28 100G SR4 Pluggable Parallel

Large Image :  Broadcom AFBR-89CDHZ Transceiver QSFP28 100G SR4 Pluggable Parallel

Product Details:
Place of Origin: China
Brand Name: Broadcom
Certification: RoHS
Model Number: AFBR-89CDHZ
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Price is negotiable
Packaging Details: Anti-boxes,Standard packaging
Delivery Time: 3-5 working day
Payment Terms: T/T, Paypal、Credit card
Supply Ability: 5000pcs/month

Broadcom AFBR-89CDHZ Transceiver QSFP28 100G SR4 Pluggable Parallel

Description
Data Rate: 100Gb/s Form-Factor: QSFP28
Center Wavelength: 850nm Transmission Distance: 100m OM4, 70m OM3
Temperature: 0°C To 70°C Connector: MMF, MPO
Applications: 100GbE Interconnects Single Power Supply: +3.3V
Highlight:

Broadcom AFBR 89CDHZ

,

Pluggable QSFP28 100G SR4

,

Parallel Fiber Optic Module

Broadcom AFBR-89CDHZ Transceiver QSFP28 100G SR4 Pluggable Parallel Fiber Optic Module



Fiber Type Single mode
Weight 0.06kg
Warranty 1 year
Tx power -8.4 to +2.4dBm
Rx sensitivity

-10.3 to +2.4 dBm

Extinction Ratio 2.0 dB
Power Consumption 2.5W
Applications
Datacom/Telecom switch and router connections





Features of QSFP28 100G AFBR-89CDHZ



  • Compliant to 100GbE electrical and optical specifications IEEE 802.3bm (Annex 83E CAUI-4 with Clause 91 RS-FEC, Clause 95 100GBASE-SR4)

  • 100GbE Link Distances 100m OM4, 70m OM3

  • QSFP28 MSA specification compliant, including new functions per SFF-8636 Rev 2.9

  • Class 1 eye safety

  • Push-pull tab: ease of transceiver insertion and extraction

  • Operates at 25.78125-Gb/s per channel with 256b/257b coded data

  • 0°C to +70°C case temperature operating range

  • Proven high reliability 850 nm technology: Broadcom VCSEL transmitter and Broadcom PIN detector

  • Hot pluggable QSFP28 transceiver for ease of installation and servicing

  • Two-wire serial (TWS) interface with digital monitoring and maskable interrupts for expanded functionality




APPLICATIONS of QSFP28 100G AFBR-89CDHZ



  • 100GbE interconnects

  • Datacom/Telecom switch and router connections

  • Data aggregation and backplane applications

  • Proprietary protocol and density applications





Description of QSFP28 100G AFBR-89CDHZ





The QSFP28 100G AFBR-89CDHZ is is a four-channel, pluggable, multimode, fiber optic QSFP28 transceiver for 100 Gigabit Ethernet (GbE) applications.



The transceiver is a high-performance module for short-range multilane data communication and interconnect applications.



It integrates four data lanes in each direction with each lane operating at 25.78125 Gb/s, giving an aggregated bandwidth of 103.125 Gb/s.



It allows optical interoperability up to 100m over an 8-fiber (or 12-fiber) MPO optical multimode OM4 cable.



The push-pull tab facilitates the insertion and extraction of these transceivers in high density environment.



Each electrical lane operates at 25.78125 Gb/s and conforms to the 100GbE CAUI4 interface with IEEE 802.3 Clause 91 RS-FEC.

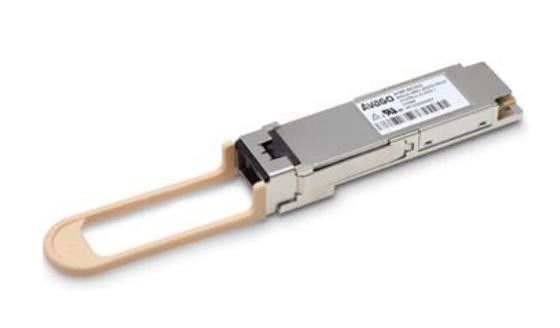

Broadcom AFBR-89CDHZ Transceiver QSFP28 100G SR4 Pluggable Parallel 0

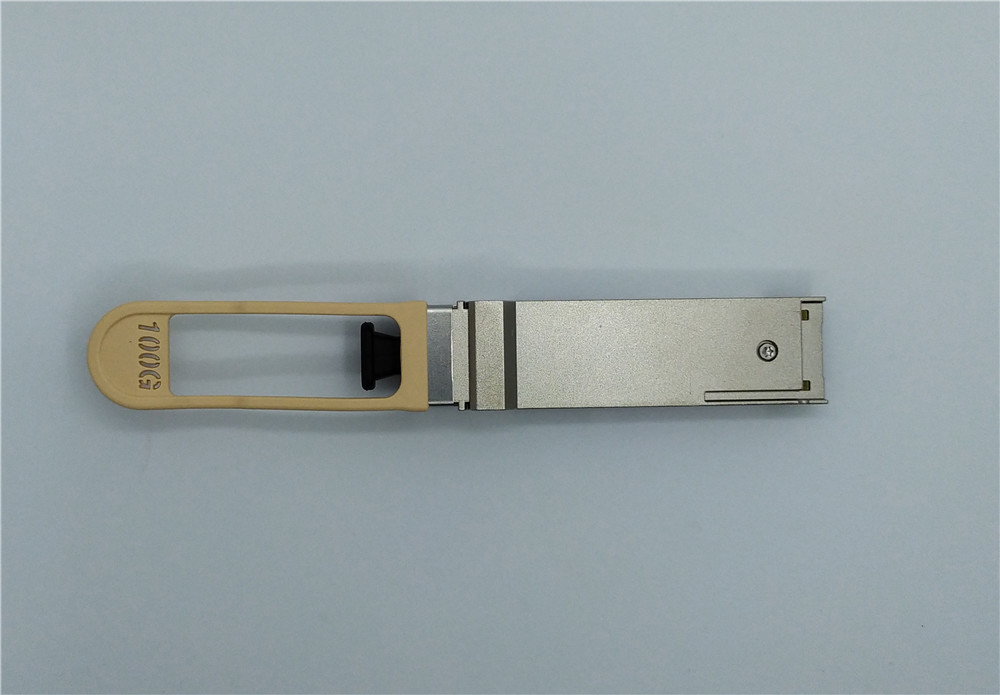

Broadcom AFBR-89CDHZ Transceiver QSFP28 100G SR4 Pluggable Parallel 1
